2011
News from VR Technology ...
- Here we see the:
- NHeO3
- with 10 Trimix gases
- and EANx up to 100%
- with our famous TEST DIVE: 42 m, 25 min
- and our TEST MIX HELIOX 21/79
- i.e.: 21 % O2 and 79 % HELIUM

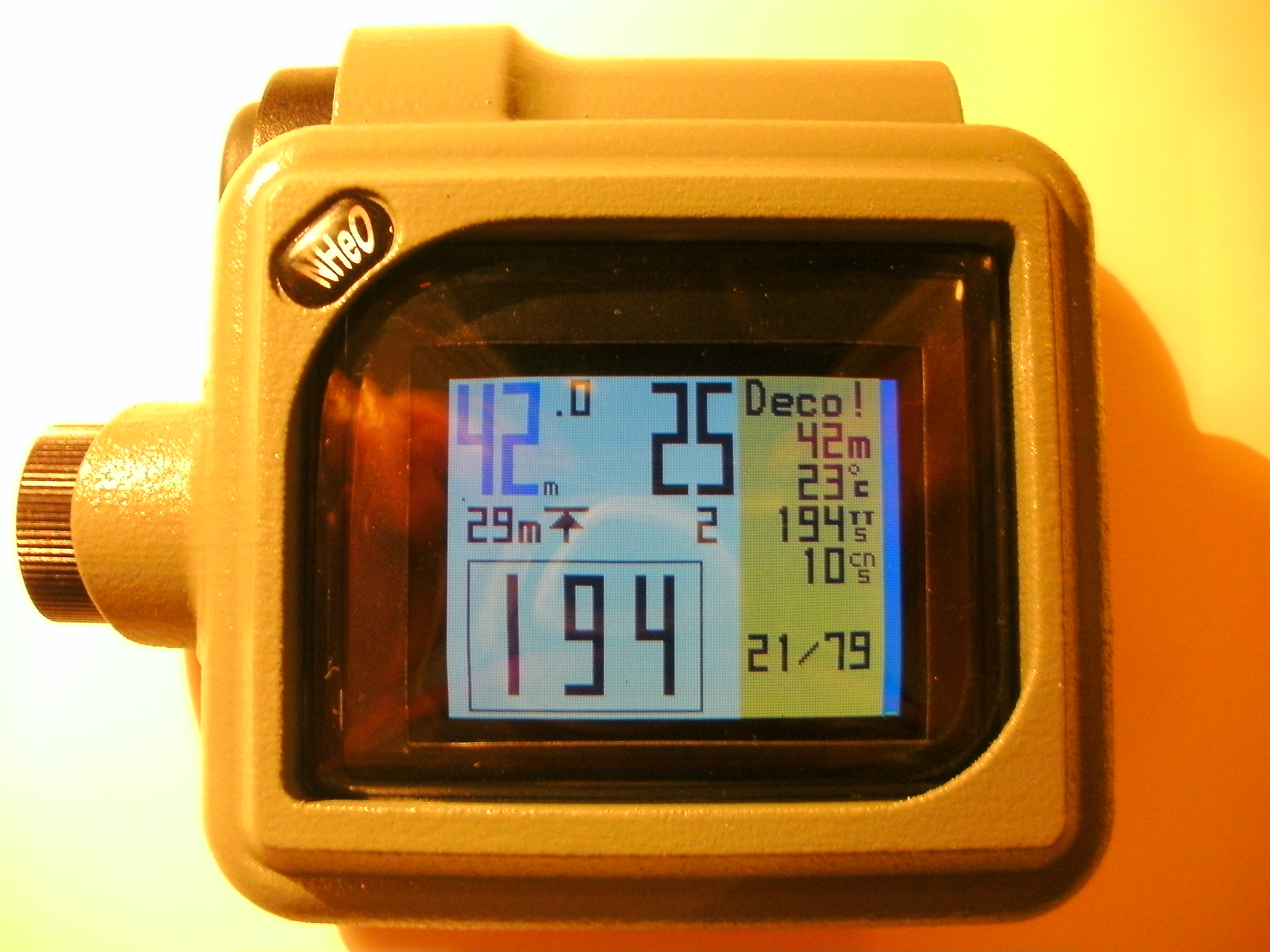

- we see in the display the Plan Mode
- at 29 m the first deep stop
- below: TTS = 194 minutes
- . . . .
- this particular TTS can not be validated with ANY
- PC-Deco-Software!
- it seems that this yields also for harmless AIR dives:
- pls. cf. the DIVEPLAN mode:
- with the ZH-86 Table from Albert Alois B. [65], p. 226, we find:
- Air, 135 min at 27 m:
- 9 m / 24 min, 6 m / 40 min, 3 m / 92 min; TTS = 158 min

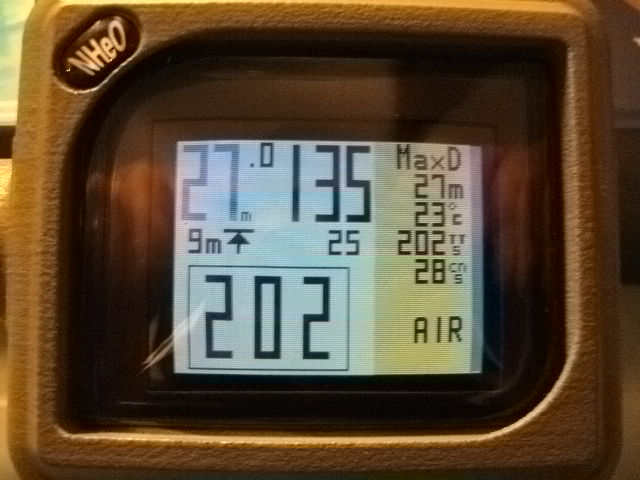

- but our NHeO is brilliant with a TTS = 202:

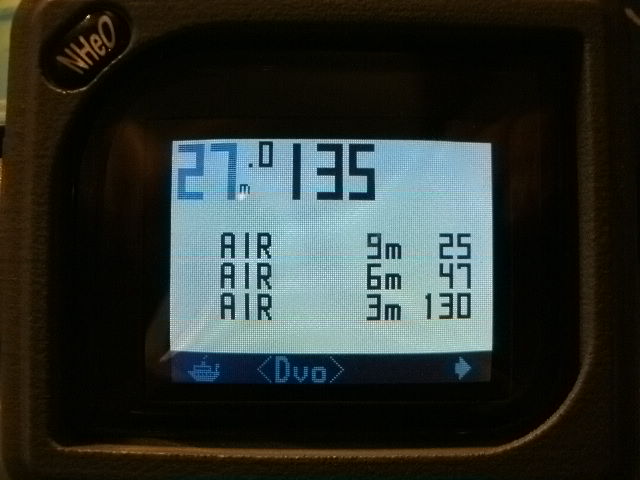

- and with these details:
- it looks that if it is quite valid to say:
- this TTS can not be validated with no whatsoever
- PC-Deco-Software!
- as well might be interesting:

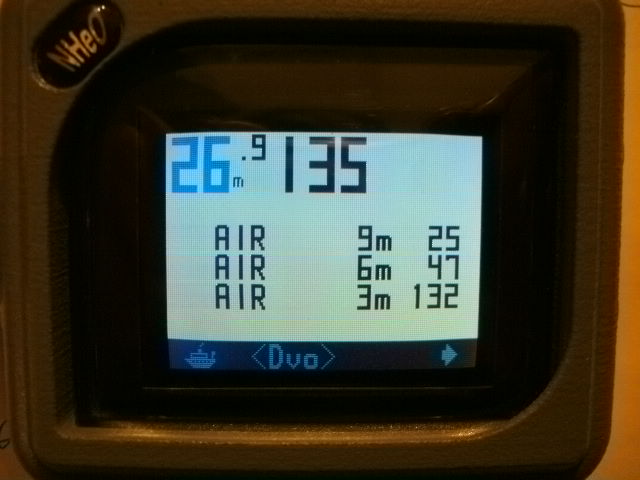

- the TTS is not really stable ...:
How do others calculate this dive?

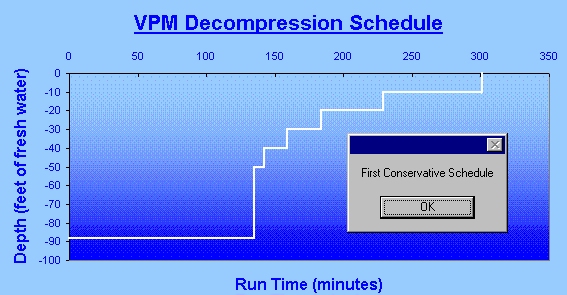

- VPM conservative:
- 15 m / 4 min, 12 m / 16 min, 9 m / 21 min, 6 m / 41 min, 3 m / 66 min, TTS = 148
- with the Buehlmann safety factor: TTS = 164
- and here, the DecoPlanner from GUE, Version 3.1.4.:
- 9 m / 21 min, 6 m / 38 min, 3 m / 81 min, TTS = 143 (with the Buehlmann safety factor!)

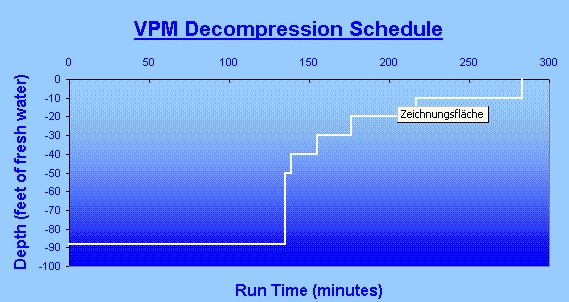

- and the VPM result:
- 15 m / 2 min, 12 m / 13 min, 9 m / 23 min, 6 m / 40 min, 3 m / 75 min, TTS = 156
